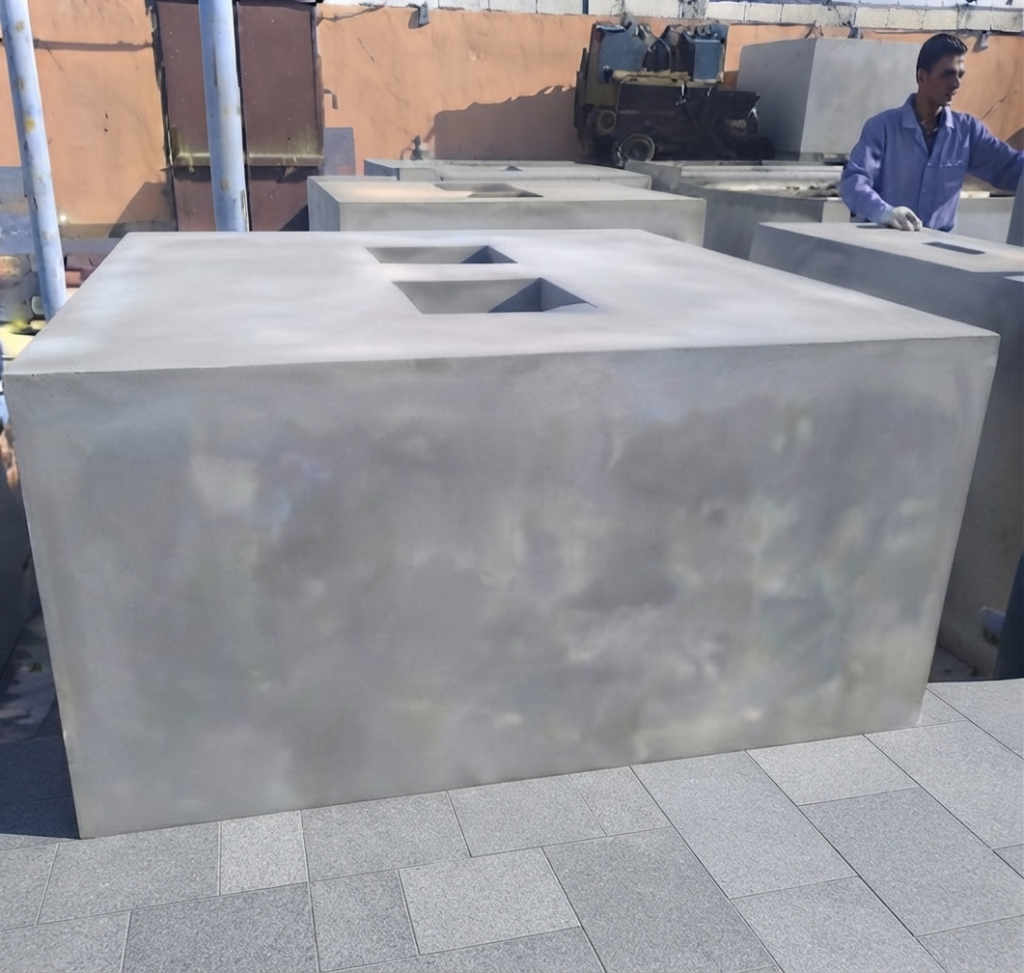

Heavy-Duty Concrete Foundation Footings & Precast Blocks
Key Features
High Wind-Load Resistance: The heavy structural mass prevents temporary fence panels and high corrugated hoarding sheets from blowing over during high UAE desert or coastal winds.
Rapid Deployment & Reusability: Prefabricated and fully cured, allowing construction crews to instantly position, use, and later relocate them to new project sites.
Space-Efficient Footprint: The 600x400x200mm dimensions provide maximum downward stabilization while keeping site walkways and roadside shoulders clear of excessive obstruction.
Pre-Cast Pipe Sleeves / Slots: Molded with precise internal sockets to allow fast insertion and snug fitting of standard G.I. fence posts without requiring on-site casting.
Sharjah & Dubai Municipality Compliant: Specially engineered to meet the structural safety guidelines required for temporary safety hoarding on active infrastructure projects.
Materials Used
Premium Grade Concrete: Cast using heavy-duty, high-strength structural concrete mix (typically SRC or OPC conforming to UAE standards).
Sulphate-Resistant Cement (SRC): Highly resistant to aggressive ground chemicals, moisture, and saline coastal environments common in the UAE, preventing concrete degradation or internal cracks.
Reinforcement Option (Optional/On Request): Can be cast with internal steel rebar mesh or micro-synthetic fibers to give the blocks maximum shatter-resistance during rugged site handling and transport.
Technical Specifications
| Parameter | Specification |
| Length | 600 mm |
| Width | 400 mm |
| Height (Thickness) | 200 mm |
| Approximate Weight | ~110 kg per block (Provides reliable counterweight base) |
| Concrete Grade | C30 / C40 High-Strength Concrete Matrix |
| Cement Type | Sulphate Resistant Cement (SRC) for high durability |
| Insert Socket Sizes | Pre-molded to fit 48.3mm OD (1.5″ NB) or 60.3mm OD (2″ NB) standard G.I. pipes |
Applications
Construction Site Hoarding: Used as the primary foundation block to anchor continuous corrugated sheet hoarding fences around active building developments.
Temporary Chain Link Fences: Ideal as counterweight boundary bases for mobile chain link setups protecting warehouses, open plots, and events.
Roadwork & Infrastructure Barriers: Acts as highly stable anchoring blocks for temporary directional signs, security fences, and pedestrian walkways near traffic zones.
Perimeter Security Gate Support: Provides localized, rugged stabilization for temporary swing gates and heavy machinery entrance frames on active work sites.
